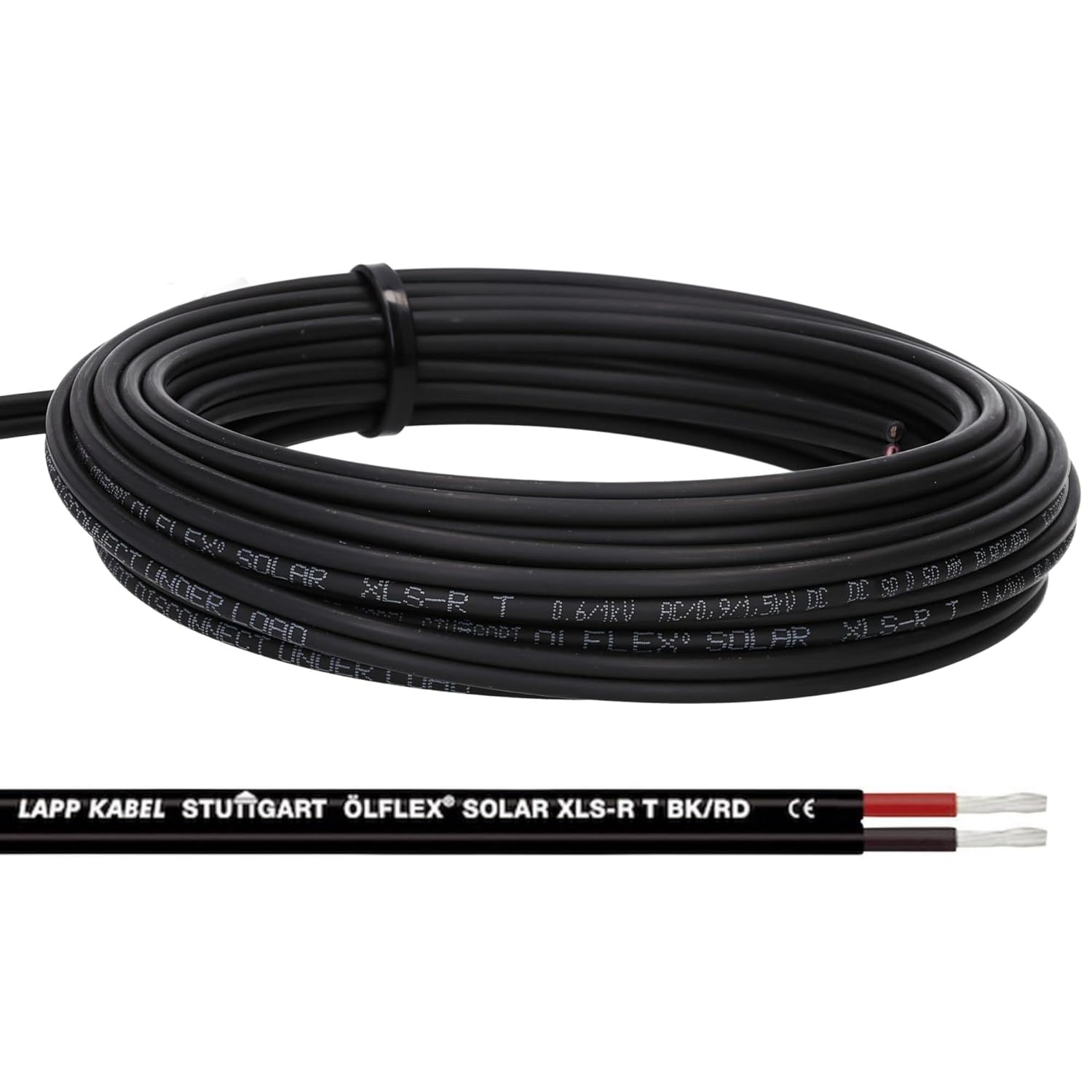

LAPP OLFLEX® SOLAR XLS-R Cable

Conductor Material: Fine-wire, tinned-copper conductor
Cross-Sectional Area: Available in various sizes, including 4 mm² and 6 mm²
Insulation: Electron beam cross-linked copolymer
Sheath: UV-resistant, halogen-free, flame-retardant outer sheath
Rated Voltage: 600/1000 V AC; 900/1500 V DC; Max. permissible operating voltage: DC 1.8 kV (Conductor-conductor, non-earthed system)
Temperature Range: -40°C to +120°C (max. conductor temperature)
Standards Compliance: Weather/UV-resistant according to HD 605/A1; Ozone-resistant according to EN 50396; Halogen-free and flame-retardant
